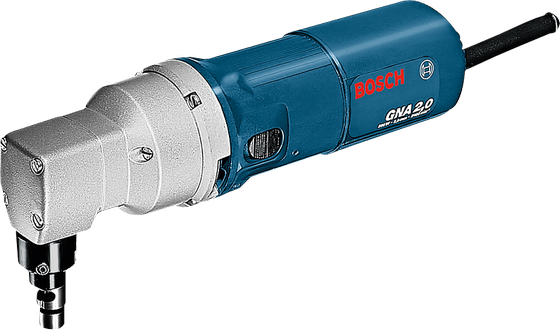

Bosch GNA 2.0

SKU 0601530103 Category

859.00

Specification overview
Material that can be processed Steel up to 400 N/mm² at 1.6 mm
Cutting track width 5 mm
Pre-drilling for interior cut-outs 21 mm
Smallest radius 40 mm
Stroke rate under load 2,100 spm
No-load stroke rate 2,600 spm
Weight 1.8 kg
Tool dimensions (length) 290 mm
Tool dimensions (height) 142 mm
Cutting capacity in steel (400 N/mm²), max. 1.6 mm
Cutting capacity in steel (600 N/mm²), max. 1 mm
Cutting capacity in steel (800 N/mm²), max. 0.7 mm
Cutting capacity in aluminium (200 N/mm²), max. 2 mm
Electric specifications
Rated input power 750 W
Power output 400 W
Vibration emission value ah 10 m/s²
Uncertainty K 1.5 m/s²
