Specification
Bevel Angle Range 47° – 0 – 47°
Blade Diameter 305 mm
Bore Size 30 mm
Dust Extraction 35 mm Outlet
Electric Brake Standard Feature
Mitre Angle Range 52° – 0 – 60°

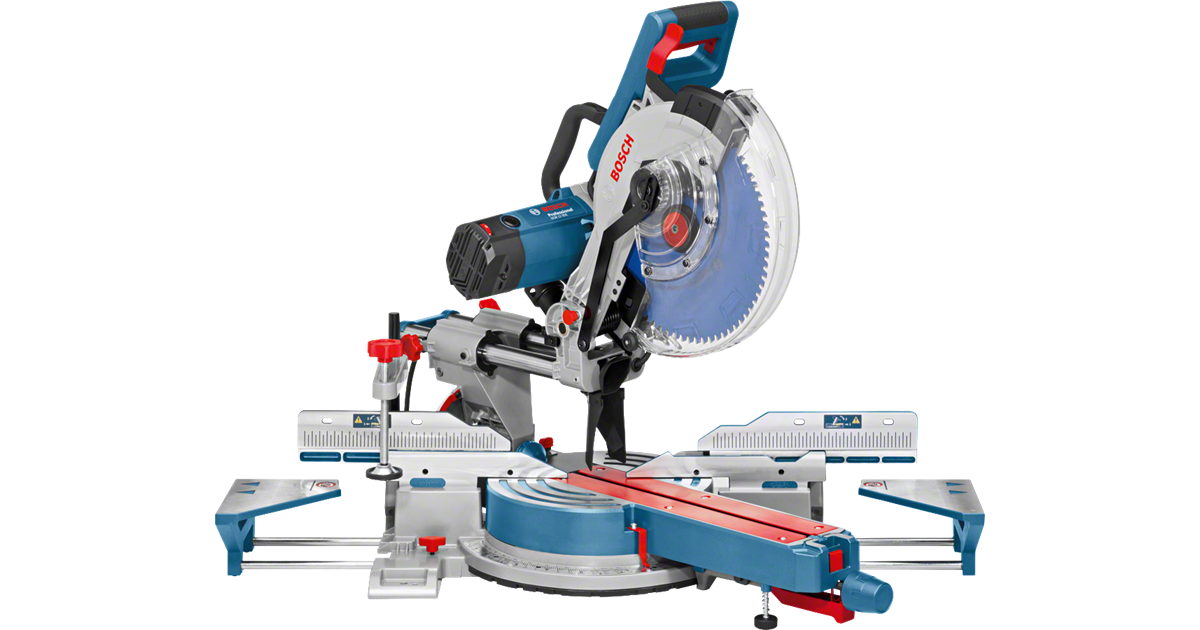

Model GCM 12 SDE
Motor Power 1,800 W
Nett Weight 28.6 kg
Overall L x W x H 860 mm x 600 mm x 530 mm
Rating Industrial
Sound Power Level [Uncertainty K] 105 dB(A) [3.0 dB]
Sound Pressure Level [Uncertainty K] 92 dB(A) [3.0 dB]
Spindle Lock Standard Feature
Vibration Cutting Wood [Uncertainty K] 2.5 m/s² [1.5 m/s²]
Max Bevel Cut @ 45º W x H 360 mm x 60 mm
Max Compound Cut @ 45º W x H 240 mm x 60 mm
Max Crosscut @ 0º W x H 400 mm x 120 mm
Max Mitre Cut @ 45º W x H 250 mm x 85 mm
